Description

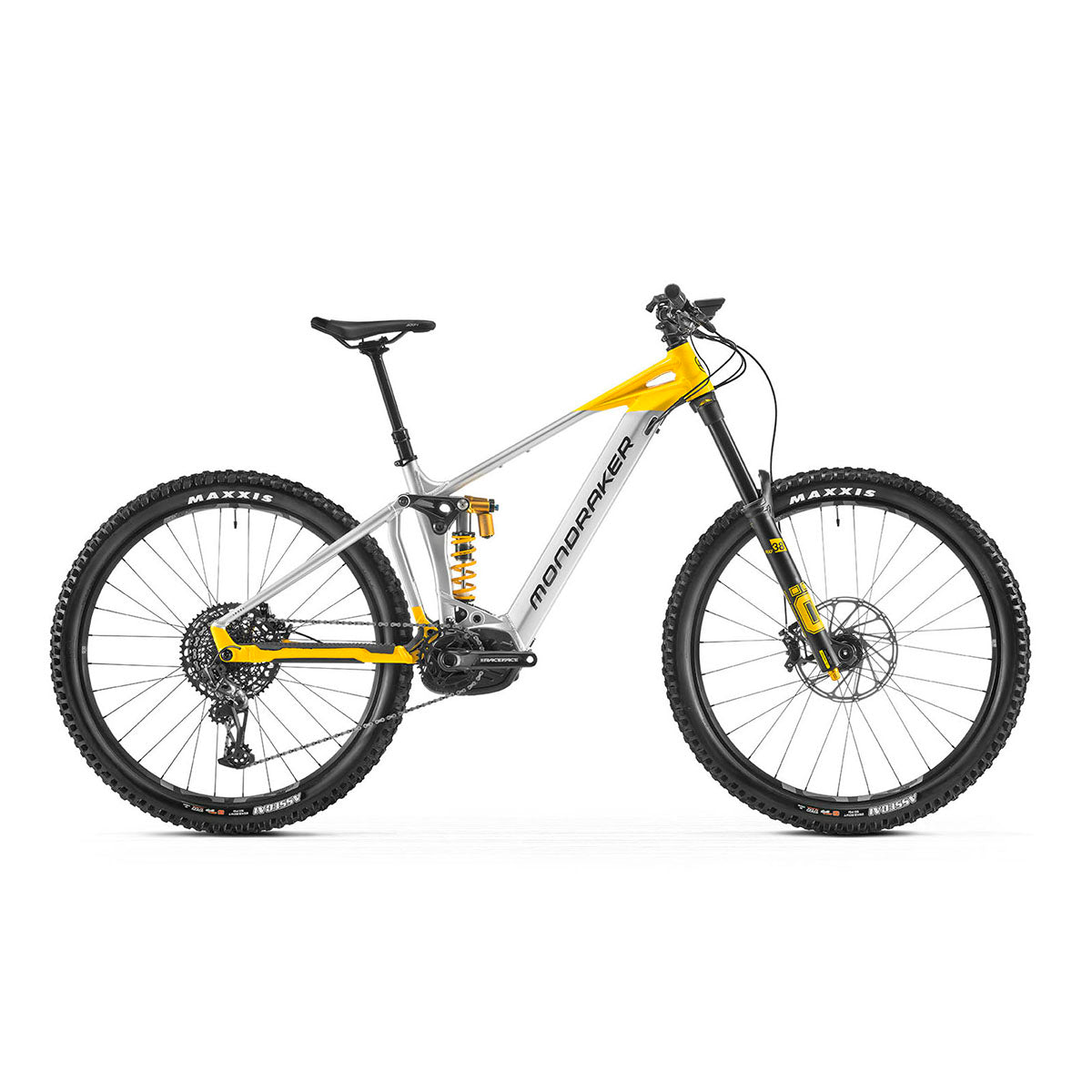

e mountainbike mondraker Mondraker - LEVEL RR 29 BikeNOTE: This used bike is sold as is, without warranty, and all sales are final. Thank you for your understanding. For inquiries, please call us at 805 850 3200. DESCRIPTION Get ready to experience the thrill with the Level RR e MTB bike designed for super enduro, trail and all mountain riding! The top end emountain bike with longer travel is a beauty. eBike optimized zero suspension uses large bearings on a one piece monoblock link for extreme bump
NOTE: This used bike is sold as-is, without warranty, and all sales are final. Thank you for your understanding. For inquiries, please call us at 805-850-3200.
DESCRIPTION
Get ready to experience the thrill with the Level RR e-MTB bike designed for super enduro, trail and all-mountain riding! The top-end emountain bike with longer travel is a beauty. eBike optimized zero suspension uses large bearings on a one-piece monoblock link for extreme bump absorption for plusher rides.
Unleash the power of the upgraded Bosch Performance Line CX GEN4 engine, backed by an integrated 750 Wh Power Tube battery, both seamlessly concealed inside a durable frame to handle the rigors of mountain bike riding. Upgrades also include a new display unit and handlebar mounted control module. Bosch smart eBike system consisting of eBike Flow app, control unit, display, batter, and drive unit offers a customized bike experience for users.
2022 Upgrades
-
Performance Line CX is sporty and economical and offers the benefits of increased torque for eMountain biking, intuitive handling for switching between riding modes, maximum agility on rigorous trails, and riding modes for personalized ride management.
- Powertube 750 provides a reliable power source for extended driving distances.
- LED Remote acts as a fully connected control center for optimal readability, smart connectivity, smart walk assist, ergonomic handling, and sustainability on the move.
- KIOX 300 display supports fun features, easy to read, sleek design, positioning flexibility, and helpful support.
- eBike Flow App helps with personalizing your ride with enhancement features, recording activities, customization of riding modes, and other upgraded features.
Zero Suspension: Mondraker’s unique zero suspension system helps with stability and control by absorbing the strongest vibrations and keeping your wheels planted on the ground even on the bumpiest of the trails. This superior suspension design offers zero power loss for pedaling stability, zero pedal kickback for minimum chain growth throughout travel, zero brake jack for isolated braking & suspension forces, and zero bumps for absorbing even the slightest bumps for extreme rear wheel stability.
Stealth Alloy Frame: The compact and lighter engine design and stealth alloy frame help with resistance and mobility for better speed and performance. Stealth Alloy technology uses smartly designed tubes catering to specific functions with the goal of achieving the lowest weight.
Forward Geometry: High-speed riders will love the safety and confidence offered by Mondraker’s proprietary forward geometry design. Forward geometry also helps with improved handling, overall control, uphill precision, and stability in tough and technical terrains
Sizes: S: 380mm / M: 420mm / L: 450mm / XL: 490mm
Colors: Gloss Racing Silver / Yellow
SPECS
COMPONENTS / TECHNICAL SPECIFICATIONS
|
FRAME |
Level 6061 Alloy Stealth Evo, e-Bike Optimized Zero Suspension System, 170mm travel, Forward Geometry, internal non-removable battery with integrated alloy cover, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 17mm axles, integrated dropout speed sensor, exclusive plastic motor covers |
|
SIZES |
S: 380mm / M: 420mm / L: 450mm / XL: 490mm |
|
REAR SHOCK |
Öhlins TTX22M 225x75mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, spring preload. Trunnion top mount, 25x10mm bottom bushings |
|
SHOCK SETTINGS |
C10 compression, R35 rebound. Spring rate: S size 251 lbs, M size 297 lbs, L size 343 lbs, XL size 411 lbs |
|
FORK |
Öhlins RXF 38 M.2 29, 180mm, TTX18 Twin Tube cartridge, tapered steerer tube, Boost 15x110mm axle, offset 44mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, air preload, ramp chamber |
|
HEADSET |
Onoff Saturn tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41x30.2x7x45°x45°,bottom 51.9x40x8x45°x45° |
|
STEM |
Ono Krypton FG 30mm, CNC, 31.8mm barbore |
|
HANDLEBAR |
Ono Krypton Carbon 1.0, rise: 25mm, width: 800mm, 9° backsweep, 5° upsweep, 31.8mm barbore |
|
GRIPS |
Ono Diamond, 1lock-on, 135mm |
|
SEATPOST |
Onoff Pija dropper internal, diameter 31.6mm, S size: 387x125mm, M size: 425x150mm, L/XL size:465x170mm |
|
SADDLE |
Fizik Terra Aidon X5 145mm |
|
FRONT BRAKE |
Sram Code R, oversized 4-piston caliper, Centerline 220mm IS 6 bolts one-piece rotor, steel-backedmetal sintered pads |
|
REAR BRAKE |
Sram Code R, oversized 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backedmetal sintered pads |
|
BRAKE LEVER |
Sram Code RSC, SwingLink and lever pivot bearings, tools-free reach and contact point adjust |
|
RIMS |
e*thirteen E*Spec Plus, IW30 Hookless, 6069 Welded Aluminum 30mm internal width, tubeless ready, 28F / 32R spokes |
|
SPOKES |
e*thirteen custom J-bend, triple-butted alloy, alloy nipples, nipple washers |
|
FRONT HUB |
e*thirteen Boost 15x110mm, triple-sealed, fully machined aluminum, IS 6 bolts |
|
REAR HUB |
e*thirteen Superboost 12x148mm, triple-sealed, fully machined aluminum w/6-degree engagement, IS 6 bolts |
|
FRONT TIRE |
Maxxis Assegai 29x2.5WT, tubeless ready, 3C MAXX GRIP compound, DH casing, 60x2TPI, folding bead |
|
REAR TIRE |
Maxxis Assegai 29x2.5WT, tubeless ready, 3C MAXX GRIP compound, DH casing, 60x2TPI, folding bead |
|
CRANKSET |
Race Face Aeect ebike, 165mm |
|
RINGS |
Sram X-Sync 2 Eagle 34T, steel, narrow-wide, 104 BCD |
|
BOTTOM BRACKET |
- |
|
PEDALS |
- |
|
CHAIN |
Sram SX Eagle, 12s, Powerlock |
|
FRONT DERAILLEUR |
- |
|
REAR DERAILLEUR |
Sram X01 Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:1 |
|
SHIFT LEVERS |
Sram Trigger GX Eagle, 12s, X-Actuation 1:1, single click |
|
CASSETTE |
Sram XG-1275, 10-52T, 12s |
|
MOTOR |
Bosch Performance Line CX Cruise (25Km/h) GEN4 BS3 |
|
BATTERY |
Bosch Powertube 750Wh |
|
DISPLAY |
Bosch Kiox 300 |
|
DERAILLEUR HANGER |
Mondraker M068 |
|
OTHERS |
- |
|
WEIGHT |
- |
DIMENSIONS
MEASUREMENTS / GEOMETRY
|
Size |
S |
M |
L |
XL |
|
|
A |
Seat Tube Length |
380 mm |
420 mm |
450 mm |
490 mm |
|
B |
Top Tube Length |
602 mm |
622 mm |
647 mm |
667 mm |
|
C |
Bottom Bracket Drop |
-15 mm |
-15 mm |
-15 mm |
-15 mm |
|
D |
Bottom Bracket Height |
357 mm |
357 mm |
357 mm |
357 mm |
|
E |
Chainstay Length |
455 mm |
455 mm |
455 mm |
455 mm |
|
F |
Seat Tube Angle, Actual |
73.5° |
73.5° |
73.5° |
73.5° |
|
G |
Seat Tube Angle, Effective |
76.5° |
76.5° |
76.5° |
76.5° |
|
H |
Head Tube Angle |
65° |
65° |
65° |
65° |
|
I |
Fork Offset |
44 mm |
44 mm |
44 mm |
44 mm |
|
J |
Wheelbase |
1250 mm |
1270 mm |
1290 mm |
1310 mm |
|
K |
Head Tube Length |
110 mm |
110 mm |
130 mm |
130 mm |
|
L |
Reach |
450 mm |
470 mm |
490 mm |
510 mm |
|
M |
Stack |
632 mm |
632 mm |
652 mm |
652 mm |
